Pos. part number I Designation Qty Replacement Remarks
1 3914413206 hose line 2
2 9721002070 pipe union SDS-S20xM27x2-type E-A3C-V80 ISO 8434-1 2
3 3914413203 hose line 1
4 9721002015 pipe union SDS-L15-M18x1,5-CF-V80-Type_ ISO 8434-1 1
5 0009031012 hollow screw 1
6 0009620438 seal ring 18x26,5x2-FKM80 10
7 0009524025 screw plug M12x1,5 1
8 3914413204 hose line 1
9 9170281130 bolt banjo 15 DIN 7643 4
10 3914413205 hose line 1
11 9170281080 hollow screw 10 DIN 7643 1
12 0009620437 seal ring 14x22x1,5-V80 2
13 3914413207 hose line 1
14 3914413200 hose line 1
15 0009031036 screw hollow 18-M22x1,5-St-A3C 1
16 0009632222 o-ring 25,3x2,4-FKM80 ISO 8434-1 2
17 0019520406 pipe union SDS-L15-M22x1,5-type E-CFS-V ISO 8434-1 3
18 3914413201 hose line 1
19 9008311180 1 hexagon head screw M8x20-8.8-A2C ISO 4017 8
20 9309412018 1 washer 8,4-ST50-A2C DIN 7349 2
21 9292003018 1 washer A8,4-ST50-A2C ISO 7089 6

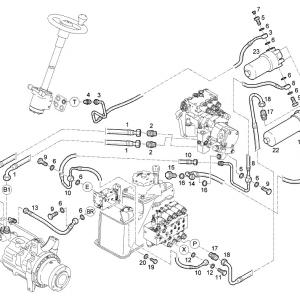

22 - filter 1 pressure filtersee illustration oil filter for hydraulic travel system
22 - filter 1 pressure filter fine particlesee illustration oil filter for hydraulic travel system
23 - filter 1 feeding filtersee illustration oil filter for hydraulic travel system
23 - filter 1 feeding filter fine particlesee illustration oil filter for hydraulic travel system
24 3914415803 support 1
25 9008311300 1 hexagon head screw M12x35-8.8-A2C ISO 4017 2 9008311298
25 9008311298 1 hexagon head screw M12x30-8.8-A2C ISO 4017 2
26 9309412022 1 washer 13-ST50-A2C DIN 7349 2
