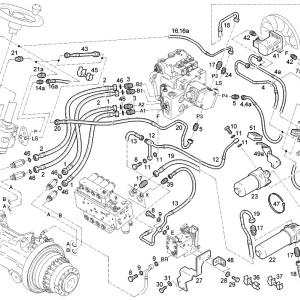

Pos. part number I Designation Qty Replacement Remarks
1 3924413236 hoseline 4SP16-P/P 2 = pos. 1 , 46
2 3924413237 3 hoseline 4SP16-P/P 2 3924413253 = pos. 2 , 46
2 3924413253 hose line 4SP16-P/P 2 = pos. 2 , 46
3 9721002070 pipe union SDS-S20xM27x2-type E-A3C-V80 ISO 8434-1 4
4 3924413246 hoseline 2SC10-N/N 1 =>| H2X393U06554
4a 3924413273 hose line 1 H2X393U06555 |=>
4a 3934413214 hose line 1 H2X393W01906 |=>Diesel version USA
5 9721002015 pipe union SDS-L15-M18x1,5-CF-V80-Type_ ISO 8434-1 2
6 9008311241 hexagon head screw M10x30-8.8-A2C ISO 4017 2 =>| 02/2003
6 9008311300 hexagon head screw M12x35-8.8-A2C ISO 4017 2 03/2003 |=>
7 3924413247 hose line 2TE12-N/J 1 =>| H2X393U06554
7a 3924413274 hose line 1 H2X393U06555 |=>
8 9170281130 bolt banjo 15 DIN 7643 4
9 0009620438 seal ring 18x26,5x2-FKM80 6
10 0009031012 hollow screw 1
11 0009620438 seal ring 18x26,5x2-FKM80 4
12 3924413233 3 hoseline 2TE12-J/D/J 1 3934413213
13 3934413201 hose line 2TE10-N/J-2TE6-N 1
14 9170281060 bolt banjo 8 DIN 7643 a.req. =>| H2X393A00033
14a 9721002058 pipe union SDS-S8xM14x1,5-type E-CFS-V8 ISO 8434-1 1 H2X393A00034 |=>
15 0009620436 sealing ring 12x19x1,5-FKM80 a.req. =>| H2X393A00033
16 3924413229 hoseline 2SC6-J/N 1 =>| H2X393A00033
16 3934413210 hose line 1 =>| H2X393A00033raised drivers seat
16a 3924413269 hose line 1 H2X393A00034 |=>
16a 3934413217 hose line 1 H2X393A00034 |=>raised drivers seat
17 9721010018 pipe union SDS-L18xM22x1,5-type E-A3C-V ISO 8434-1 4
18 3924413244 hoseline 2SC16-N/N 1
19 3934413200 hoseline 2SC16-N/N 1
20 3924413254 hoseline 2SC10-N/P 1
20 3934413211 hose line 1 raised drivers seat
21 9721002062 pipe union SDS-S12xM18x1,5-type E-A3C-V ISO 8434-1 1 =>| H2X393A00033
21a 0009512478 pipe union SDS-S12xM14x1,5-type E-A3C-V ISO 8434-1 1 H2X393A00034 |=>
22 - filter 1 pressure filtersee illustration oil filter for hydraulic travel system
22 - filter 1 pressure filter fine particlesee illustration oil filter for hydraulic travel system
23 - filter 1 feeding filtersee illustration oil filter for hydraulic travel system
23 - filter 1 feeding filter fine particlesee illustration oil filter for hydraulic travel system
24 9721002008 pipe union SDS-L8xM12x1,5-type E-A3C-V8 ISO 8434-1 1
25 3924415810 3 support 1 3924415821
25 3924415821 3 support 1 3924415822
25 3924415822 3 support 1 3914415803
25 3914415803 support 1
26 9008311180 1 hexagon head screw M8x20-8.8-A2C ISO 4017 6
27 3924415802 support 1
28 9294003018 1 washer 8,4-ST50-A2C ISO 7092 2
29 9008311180 1 hexagon head screw M8x20-8.8-A2C ISO 4017 2 9008311183
29 9008311183 1 hexagon head screw M8x25-8.8-A2C ISO 4017 2
30 9008311183 1 hexagon head screw M8x25-8.8-A2C ISO 4017 2
31 9308003018 1 washer 8-200HV-A2C ISO 7093-1 8
32 9309412020 1 washer 10,5-ST50-A2C DIN 7349 2 =>| 02/2003
32 9309412022 1 washer 13-ST50-A2C DIN 7349 2 03/2003 |=>
33 0009550812 clamping piece pair Z-KP-2-R-15-15-PP DIN 3015-3 1 =>| H2X393U06554
34 0009551500 cover plate Z-DP-2-W1-A2C DIN 3015-3 2 =>| H2X393U06554
35 9007311195 1 hexagon head bolt M8x50-8.8-A2C ISO 4014 1 =>| H2X393U06554
36 0009502255 pipe clamp assy. 1 =>| H2X393W01905Diesel
36 0009502255 pipe clamp assy. 1 LPG
37 0009502294 pipe clamp assy. 1
38 9210281110 1 nut M8-8-A2C ISO 4032 1 =>| H2X393U06554
39 9721002010 pipe union SDS-L10xM14x1,5-type E-A3C-V ISO 8434-1 1
40 9384621744 slotted spring pin 21x30-St ISO 13337 2 03/2003 |=>
41 - motor 1 see illustration cooling system diesel engineor cooling system LPG engine
42 - pipe union 2 see illustration cooling system diesel engineor cooling system LPG engine
43 3934413204 3 hose line 1 3934413211 raised drivers seat
44 3934413205 3 hose line 1 3934413210 raised drivers seat
45 0009502291 pipe clamp assy. 3 raised drivers seat
46 0009632129 o-ring 16,3x2,4-FKM80 ISO 8434-1 8
47 0009552037 cable tie 9x350 1 =>| H2X393U06554
48 3923634217 angle 1 maximum specification harness main
49 3924415841 3 support 1 3924415848 H2X393U06555 |=> =>| H2X393W01905Diesel
49 3924415848 support 1 H2X393U06555 |=> =>| H2X393W01905Diesel
49a 3934415801 support 1 H2X393W01906 |=>Diesel
49 3924415841 3 support 1 3924415848 H2X393U06555 |=>LPG
49 3924415848 support 1 H2X393U06555 |=>LPG
50 0009550883 hose clamp 1 0009550844
50 0009550844 hose clamp 1
51 0009550893 hose clamp 1
